Window & door planning
4 Over 4 Window Grids in Winter Springs, Florida
Compare 4-over-4 window grids, clear glass and grid applications, then verify each replacement window’s pattern and finish in its drawing.
Choosing 4 over 4 window grids for a home in Winter Springs, Florida starts with understanding the count: it describes four visual sections in each sash, not four panes across and four down. That pattern is only one part of the decision. A window’s width changes the proportions you see, while grid placement affects whether the glass surfaces are smooth or have physical bars. Compare the proposed layouts from inside and outside, decide how you want the grids to meet the glass, and check the selection for each opening. This guide explains how to read the pattern, compare it with alternatives, and match drawings to written options before ordering replacement windows. The goal is a choice you can picture and verify, not just a familiar-sounding label.
Key Takeaways
- 4-over-4 window grids describe four visual lights in each sash, not four panes across and four down.
- Window width changes the proportions of the sections, so compare the drawing for each opening.
- Grid application determines whether bars sit between panes, on a glass surface or in a product-specific removable option.
- A useful replacement-window specification identifies each opening, its pattern, application and relevant colors.
What Are 4 Over 4 Window Grids?

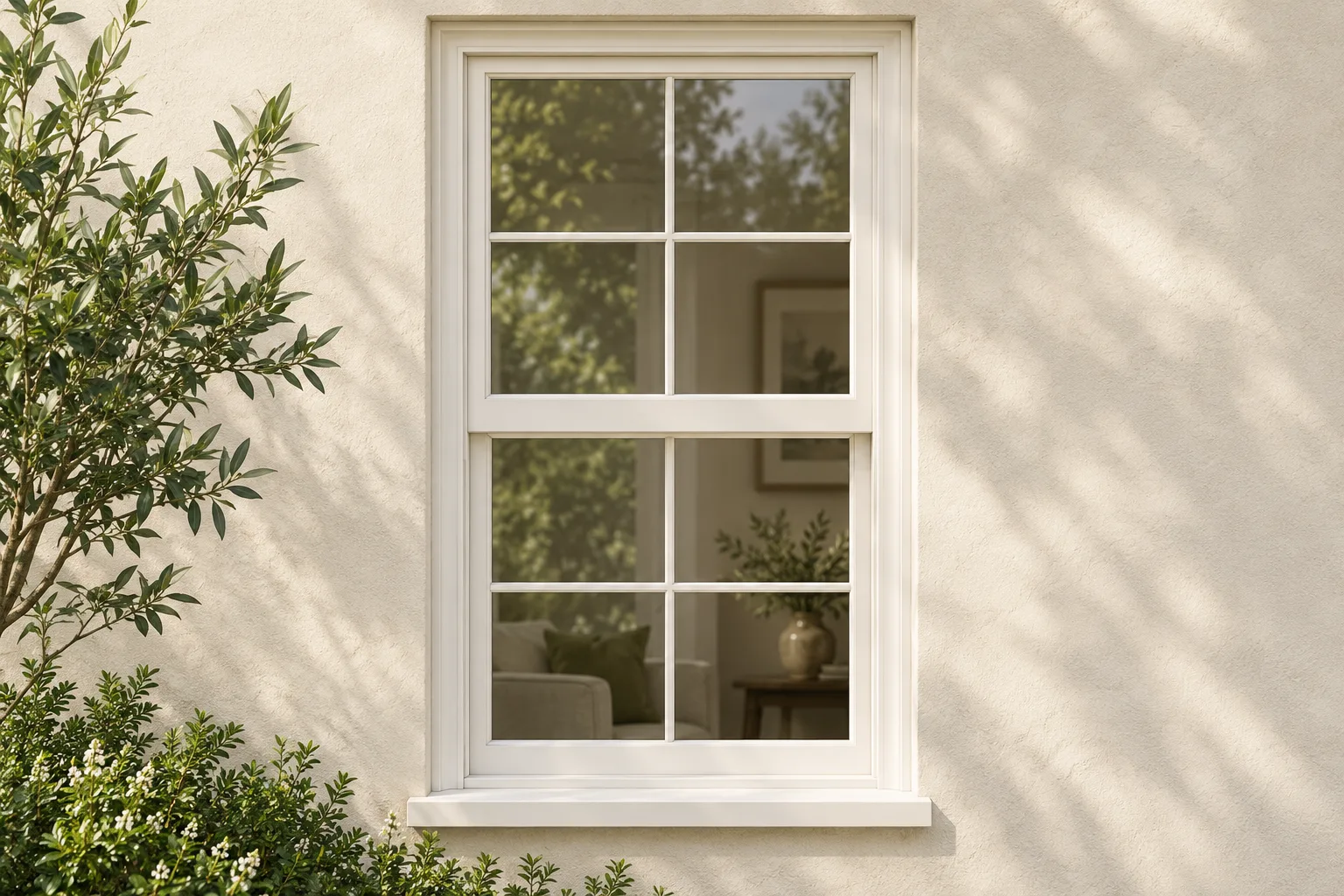

4-over-4 window grids divide the glass into four visual lights in the upper sash and four in the lower, commonly in a two-column, two-row arrangement in each sash. The count describes the pattern, not the number of separate sealed glass units.
The pattern also says nothing about how the window operates. The upper and lower patterns do not have to match: some layouts place grids in one sash and none in the other.
Compare the View From Indoors and Outside
The same count can produce different-looking sections on windows with different widths. A two-column layout on a narrow window will have narrower-looking sections than that count on a wider window. So compare the rectangles in the drawing, not just the pattern name.
A traditional grid pattern divides the glass into equal sections. A prairie pattern frames a larger center, while clear glass has no visible grid divisions. These are visual choices; the pattern name alone does not establish product availability or make one option objectively better.
| Choice | Visual arrangement | May suit a priority for | Check in the drawing |
|---|---|---|---|
| 4-over-4 | Four visual lights in each sash | A divided-light look in both sashes | Whether each sash shows the intended two-by-two layout |
| 4-over-1 | Four upper lights and one lower light, as drawn | Different layouts in the two sashes | Which sash has one light and how the upper pattern is arranged |
| Clear glass | No visible grid divisions | An uninterrupted view | That each intended opening is shown without grids |
As a hypothetical comparison, imagine a narrow window beside a wider one on the same facade. Both could have a 4-over-4 pattern, yet the proportions of the visible rectangles would differ. Mark the main seated view on a room photo and compare it with the drawings. Then step back to consider how the selected layouts read across the facade from your usual approach. Choose based on the particular openings and views that matter to you; there is no single best-looking option for every home.
Choose How the Grids Meet the Glass

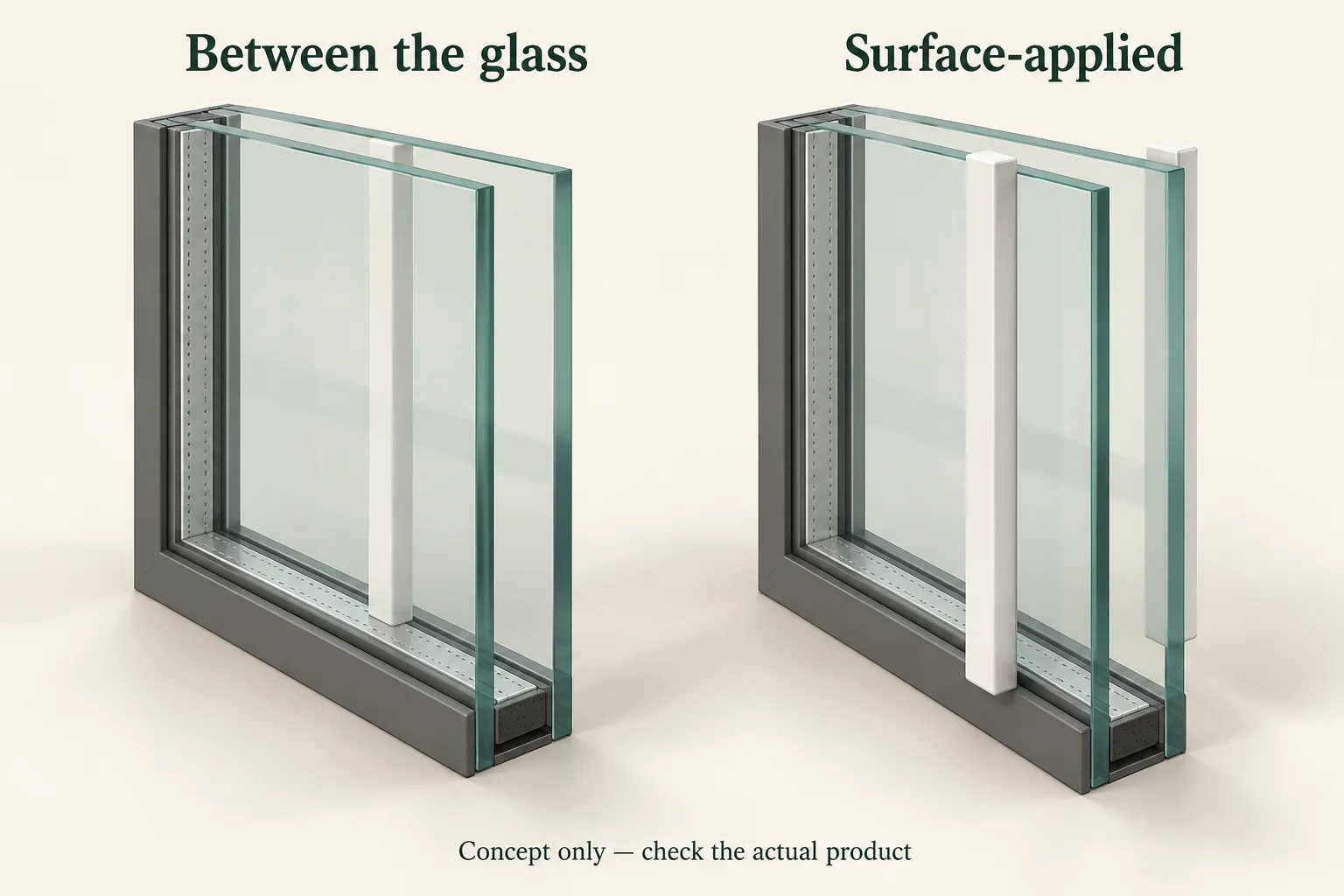

Pattern and application answer different questions. Pattern describes the visual layout; application describes where the grid sits relative to the glass. Between-glass grids are sealed between panes, leaving smooth inner and outer surfaces. Surface-applied grids put physical bars on a glass surface. Some products offer removable interior grilles, but that option is product-specific.
When reviewing a sample or product description, ask where each grid layer sits and whether the interior and exterior surfaces are smooth. Look at bar profile, width and color on both sides if relevant. Ask how the specific product should be cleaned, and follow its instructions. For an existing window, whether a grid can be added depends on the particular product and opening; treat retrofit fit as a question for assessment. Do not pry at bars or try to open sealed glass.
Check the Drawing for Each Replacement Window
Turn your visual choice into an opening-by-opening specification. Identify each room or window, show the upper and lower sash patterns on its drawing, name the application, and note the interior and exterior colors if they differ. List which openings are included, including any that should have clear glass or another layout. This helps make the proposal specific without assuming that matching pattern names mean matching construction.
For example, two hypothetical proposals might both say “4-over-4.” One could specify grids between panes; the other could specify bars applied to a glass surface. The pattern name is the same, but the construction and exposed surfaces differ. A drawing and written description together make that distinction easier to spot.
Ask the provider to resolve any discrepancy between the drawing and written options, then confirm the correction in writing.
FAQs
Does 4-over-4 mean four panes across and four down?
No. It means four visual lights in the upper sash and four in the lower, commonly arranged two across and two down in each. The count describes the pattern, not four separate sealed glass units.
Are window grids removable?
Not necessarily. Pattern describes the visual layout, while application describes where the grid sits relative to the glass. Depending on the product, grids may sit between panes, be applied to a glass surface or be available as a removable interior option. Confirm the specific product and its instructions rather than assuming a grid can be removed.
What should I check before ordering replacement windows with grids?
Two proposals can use the same 4-over-4 name but describe different constructions. Ask the provider to resolve any discrepancy between the drawing and written options before approving the order. Confirm the correction in writing.
Conclusion
A 4-over-4 label gives you a starting point, not a full description of a replacement window. Compare the appearance at the openings that matter, decide how the grids should meet the glass, and check that each drawing matches its written specification. Before approving an order for your Winter Springs, Florida home, review both together and ask the provider to resolve any mismatch. You can discuss opening-by-opening options through Windows and Doors by Martin Toro’s replacement-window service.
